MSE is a global leading manufacturer of all types of steel products
We serve a wide spectrum of industrial markets by offering high-value forging solutions in an extensive range of carbon, alloy and stainless steels, titanium and superalloys.
Our world-class standards, strong commitment to quality, exceptional customer service and our state-of-the-art manufacturing facilities have positioned MSE as a strategic, reliable supplier among the world’s most outstanding OEM customers.

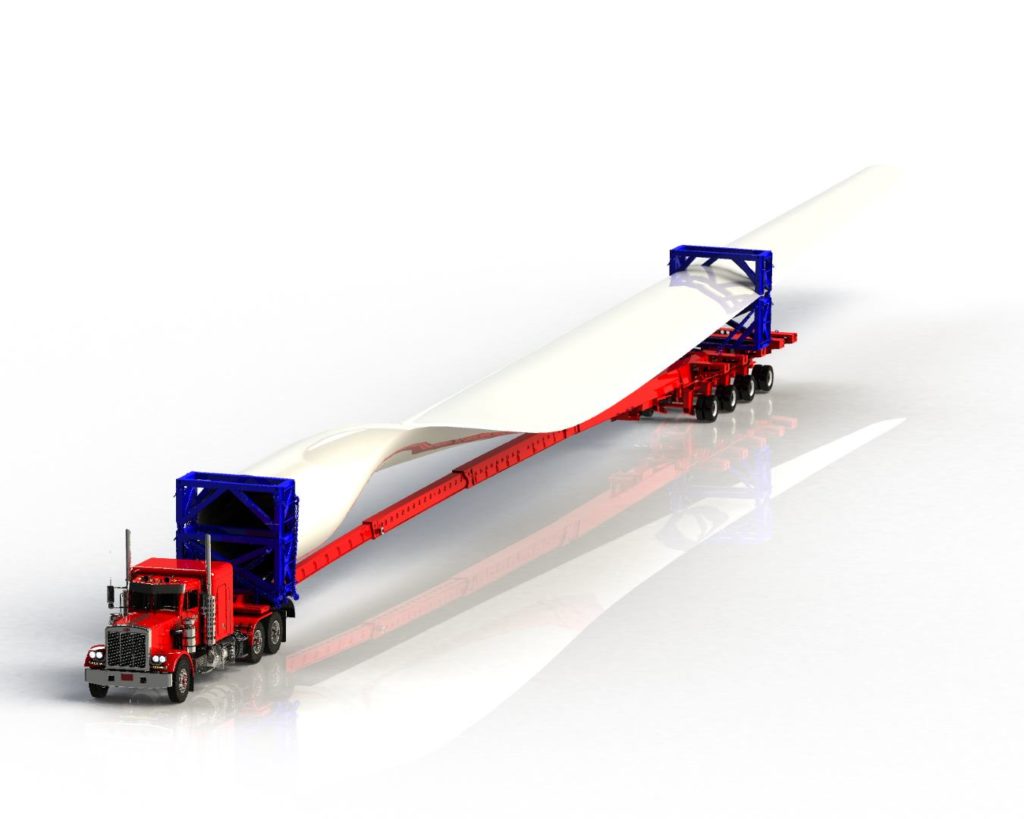

MSE EXTENDABLE PLATFORM 4 AXLE
SPECIFICATIONS
Technical data
Brand:
MSE
Minimum Length (closed):
22,820 mm (74’-10”)
Length (open):
62,400 mm (204’-9”)
Length with extension (open):
67,761 mm (222’-4”)
Width:
2,578 mm (8’-6”)
Capacity:
40,000 Kg (88,184 Lb)
Neck length:
3,196 mm (10’-6”)
Number of axles:
4
Suspension:
Pneumatic
Number of extensions:
3
Axles:
with remote-controlled hydraulic steering.
Tires:
215/75 R17.5
Pitch of extensions:
450 mm (1’-6”)
Steel Type:
A514
Previous slide
Next slide
MSE SCHNABLE
SPECIFICATIONS
Technical data
Brand:
MSE
Capacity:
85,000 Kg (187,393 Lb)
Number of axles:
9
Suspension:
Pneumatic
Steering
Remote-controlled electro-hydraulic controls
Minimum length (transport):
24,508 mm (80'-5")
Maximum length (loaded):
54,218 mm (177'-11")
Maximum length parts:
30,000 mm (98'-5")
Width:
3,000 mm (10')
Tires
295/75 R22.5
Movement mechanism:
Hydraulic pistons
Minimum flange size (inside diameter):
3,400 mm (11'-2")
Maximum flange size (inside diameter):
5,200 mm (17'-1")
Swivel kingpin:
capable of accommodating 2" and 3.5" quintas
Other:
Ability to load square and/or rectangular pieces
Steel Type:
A514
Previous slide
Next slide
Previous slide
Next slide
MSE LOWBOY
SPECIFICATIONS
Technical data
Brand:
MSE
Capacity:
50,000 Kg (110,231 Lb)
Number of axles:
2 or 3
Suspension:
Pneumatic
Length:
14,686 mm (48’-2”)
Bed length:
7,602 mm (24’-11”)
Width:
2,591 mm (8’-10”)
Bed length:
7,602 mm (24’-11”)
Width:
2,591 mm (8’-10”)
Tires
235/75 R17.5
Number of tires:
8 or 12
King pin:
Two positions
Steel Type:
A514
Previous slide
Next slide
Previous slide
Next slide
