MSE is a global leading manufacturer of all types of steel products
We serve a wide spectrum of industrial markets by offering high-value forging solutions in an extensive range of carbon, alloy and stainless steels, titanium and superalloys.
Our world-class standards, strong commitment to quality, exceptional customer service and our state-of-the-art manufacturing facilities have positioned MSE as a strategic, reliable supplier among the world’s most outstanding OEM customers.
STATE-OF-THE-ART
MACHINES

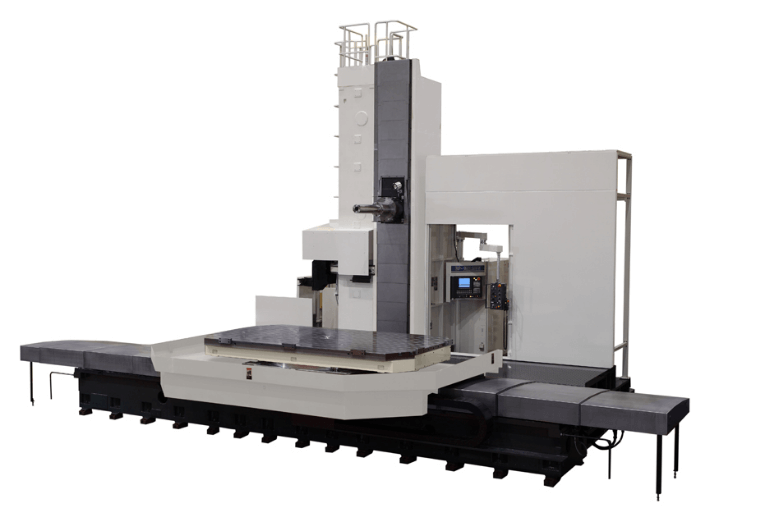

TOSHIBA MACHINE BP-150-R35
Technical data
Spindle Size:
149.86 mm
X-Horiz Tvl of Table:
6,096 mm
Y-Vert Tvl of Head:
3,556 mm
Power:
37.3 kW
RPM:
2,500 RPM
Table-W:
1,999 mm
Table-L:
3,500.1 mm
Spindle Tvl.:
Control:
CNC
Model:
BP-150.R35

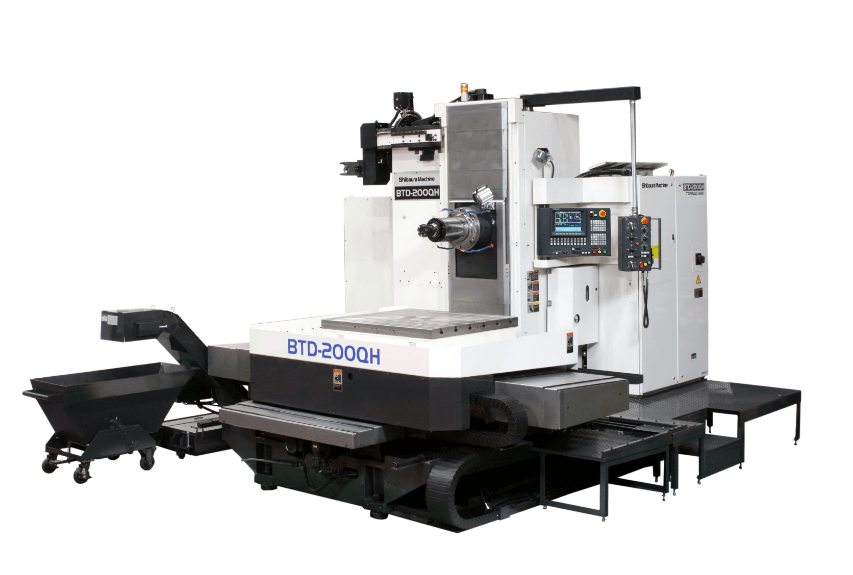

TOSHIBA MACHINE BTD-200QF
Technical data
Spindle size:
110 mm
X-Horiz Tvl of Table:
1,500 mm
Y-Vert Tvl of Head:
1,200 mm
Power:
30/22 kW
RPM:
2,500 RPM
Table-W:
1,999 mm
Table-L:
3,500.1 mm
Spindle Tvl.:
2,235.2 mm
Control:
CNC
Model:
BTD-200QF

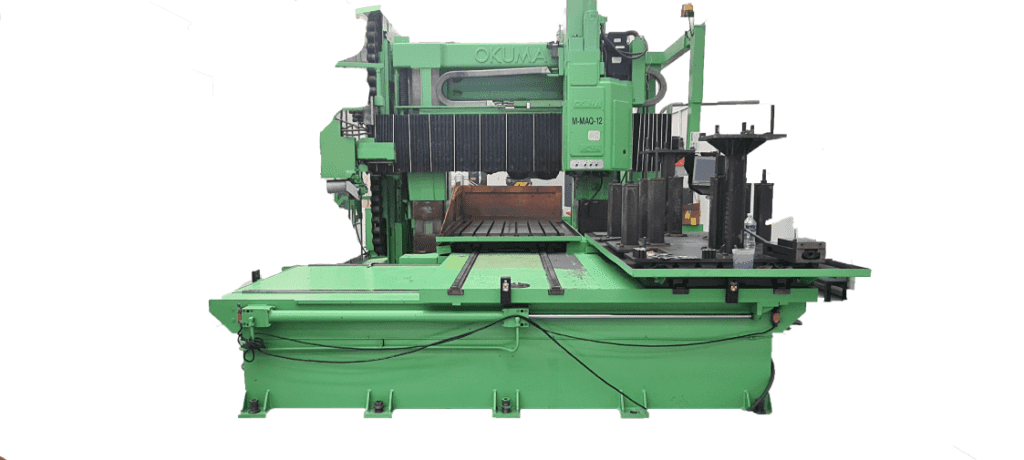

Okuma MCVA
Technical data
Spindle Diameter:
100 mm
Cross Travel(x):
1,100 mm
Vertical Travel(y):
1,600 mm
Longitudinal Travel:
2000 mm
Spindle Speed:
50-3,600 RPM

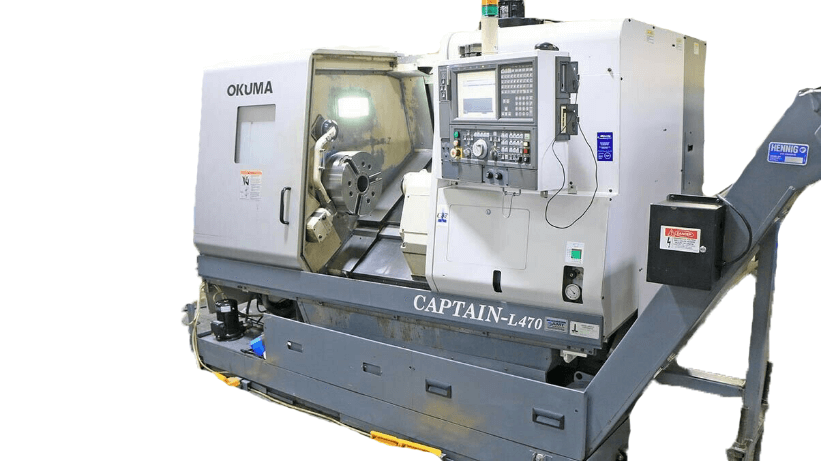

Okuma CNC CAPTAIN-L470
Technical data
Power
22.4 KW
Max RPM:
3,000 RPM
Turning Dial:
419.1 mm
Swing
619.76 mm
Machining Length:
647.7 mm
Tailstock:
YES
Control:
CNC (OSP E100L)

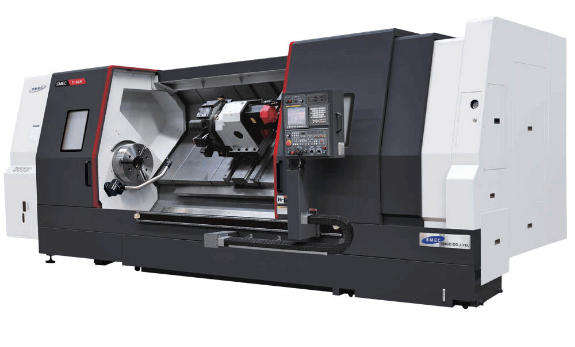

Samsung CNC PL60
Technical data
Spindle Motor:
45/37 kW
X-Horiz Tvl of Table:
1,500 mm
Y-Vert Tvl of Head:
1,200 mm
Feed Motor:
4/9 kW
Spindle Speed:
1,500 RPM
Max Turning Diameter:
900 mm
Max Turning Length:
3,200 mm
Control:
CNC
Model:
PL60
Romi CNC M420
Technical data
Maximum turning length (Z-axis):
1000.76 mm
Turning diameter over bed (max):
340.36 mm
Maximum rotary speed of the main spindle:
4000 RPM

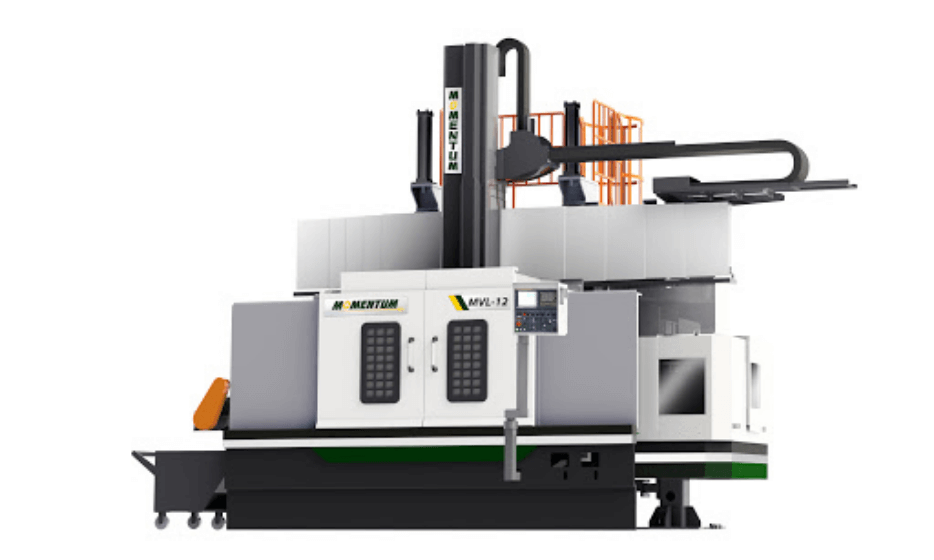

Momentum
Technical data
Table Diameter:
1,244.6 mm
Turning:
1,600.2 mm
Altura de Trabajo-U/R:
1,193.8 mm
Power:
44.7 kW
RPM:
2,500 RPM
Table-W:
1,999 mm
Table-L:
3,500.1 mm
Spindle Tvl.:
Control:
CNC
Model:
BP-150.R35

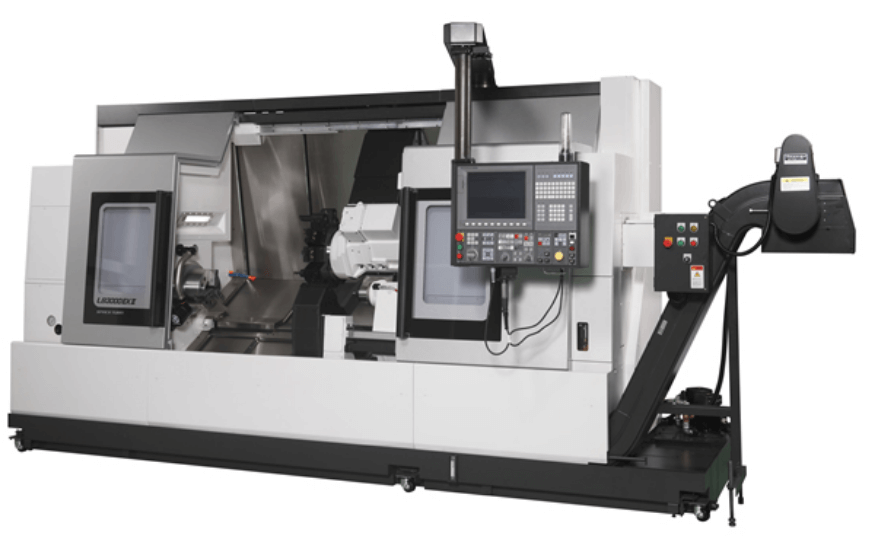

Okuma LB3000 EX
Technical data
Power:
22.4 KW
Max RPM:
5,000 RPM
Turning Dial:
409.96 mm
Swing:
579.88 mm
Machining Length:
500.13 mm
Number of Axis:
2
Control:
CNC
Weight:
8800 LBS

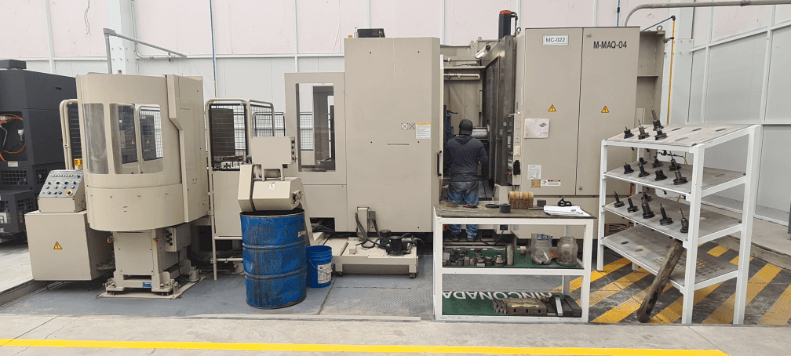

Okuma&Howa M-550H
Technical data
Turret Capacity:
8 Positions
Max Swing:
439.928 mm
X-axis travel:
400 mm
Y-axis travel:
400 mm
Z-axis travel:
375 mm
Spindle Speed:
12,000 RPM
Control:
CNC
Power:
60 KVA

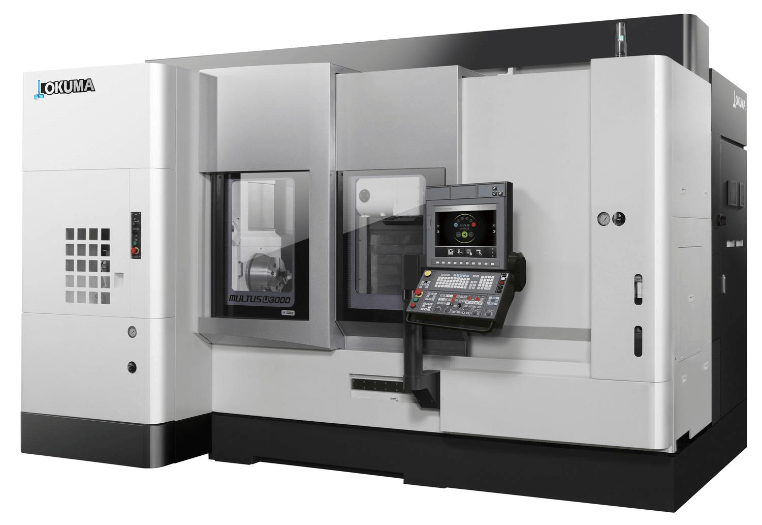

Okuma Multus U3000
Technical data
Power:
22/15 KW
Max turning diameter:
650 mm
Spindle Type:
JIS A2-6 [JIS A2-8]
Speed Range:
50~5,000
Rapid Traverse XA/ZA:
50 m/min
Rapid Traverse ZB/Y:
40 m/min
Rapid Travers XB:
25 m/min
TOSHIBA MCW-4624
Technical data
X Stroke – Metric (mm):
3500
Y Stroke – Metric (mm):
3700
Table Size (WxL)- Metric (mm)
3200 x 2400
Max Load – Metric
10,000 kg
Spindle RPM Metric
4000
